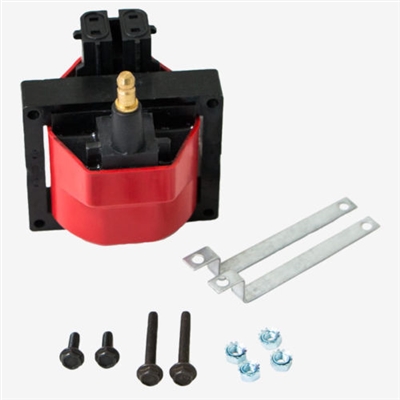

GM '84-'95 V6/V8 E-Core Ignition Coil chevy gmc
GM '84-'95 V6/V8 E-Core Ignition Coil chevy gmc



Our Price: $24.99


Product Code: JM6936R
Qty:

Description


TSP's GM E-Core ignition coils are the top coils on the market today, featuring magnetic steel cores specially designed to deliver up to 15% more spark than OEM. They use a high resistant epoxy material for added resistance to shock and vibration at high RPM.

Coil Style:E-core
Primary Resistance:0.68 ohms
Secondary Resistance:4.8k ohms
Spark Duration:300 uS
Max Voltage:44kV
Peak Current:220mA
Turn Ratio:75:1
Inductance:5.6 mH
Mounting Bracket:Included
Coil shape:Square

Top Street Performance is proud to offer a 1 year warranty on all products
