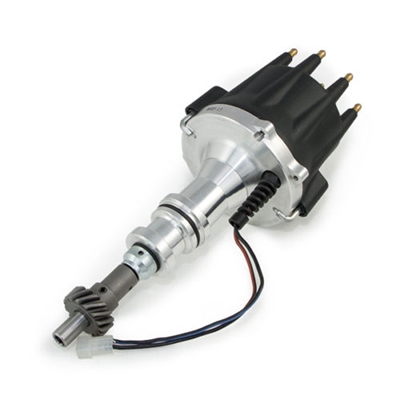

Ford BB 351 C cleveland V8 Pro Series Pro Billet Distributor black cap
Ford BB 351 C cleveland V8 Pro Series Pro Billet Distributor black cap



Our Price: $110.00

Product Code: JM7606BK
Qty:

Description


OVERVIEW

Top Street Performance is proud to offer a one-year warranty.

TSP’s Pro Series Pro Billet Distributor is for the racer who needs added spark and precision for their high performance power plant. It features a high quality, fully adjustable mechanical advance and an accurate magnetic pickup trigger. The CNC-machined aluminum body and hardened steel shaft, guided by a sealed ball bearing on top and a sintered steel bushing on the bottom, ensure stability up to 10,000 RPM. The distributor can be locked out and features solid brass terminals and a color-matched wire retainer. Fire up your big block, Cleveland, or Modified Ford with a Pro Series Pro Billet distributor from Top Street Performance.

Requires the use of an ignition control system and external ignition coil.

All TSP Pro Series distributors feature a top-of-the-line, fully adjustable mechanical advance.

FULLY ADJUSTABLE MECHANICAL ADVANCE

An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.

SPECIFICATIONS

TRIGGER STYLEMagnetic
ADVANCE TYPEMechanical
CAP STYLEMale
MECHANICAL TACH DRIVENo
SLIP COLLARNo
COIL INCLUDEDNo
COIL TYPEExternal
COIL OUTPUT35Kv+ recommended
GEAR MATERIALChromoly Steel
HOUSING MATERIALMachined Aluminum
IGNITION BOX REQUIREDYes
MARINE USENo
CYLINDERS8
INCLUDED3 Bushings and 4 Springs for Mechanical Advance,
Color-Matched Spark Plug Wire Retainer with Screws

FITMENT

FORD BIG BLOCK "385" V8

  • 6.1 L / 370 in3
  • 7.0 L / 429 in3
  • 7.5 L / 460 in3

FORD CLEVELAND "335" V8

  • 5.8 L / 351 in3 often referred to as "351C"
