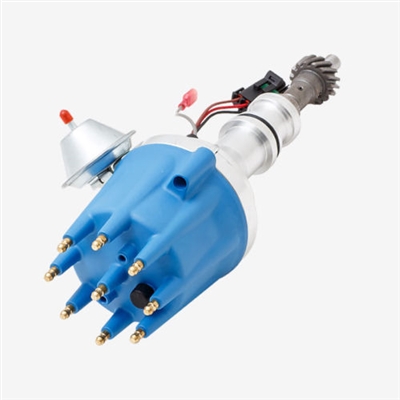

Ford BB 351C V8 Pro Series Ready to Run Distributor Blue Cap cleavland
Ford BB 351C V8 Pro Series Ready to Run Distributor Blue Cap cleavland



Our Price: $120.00

Product Code: JM7706BL
Qty:

Description


OVERVIEW

Top Street Performance is proud to offer a one-year warranty.

TSP’s Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.

All TSP Pro Series distributors feature a top-of-the-line, fully adjustable mechanical advance.

FULLY ADJUSTABLE MECHANICAL ADVANCE

An important feature on all Top Street Performance Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.

All TSP Pro Series distributors feature a top-of-the-line, fully adjustable mechanical advance.

HIGH-OUTPUT CIRCUIT BOARD MODULE

What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Build using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.

SPECIFICATIONS

TRIGGER STYLECircuit Board Module with Magnetic Pick-up
ADVANCE TYPEMechanical and Vacuum
CAP STYLEMale
MECHANICAL TACH DRIVENo
SLIP COLLARNo
COIL INCLUDEDNo
COIL TYPEExternal
RECOMMENDED COIL OUTPUT35,000+ Volts
GEAR MATERIALChromoly Steel
HOUSING MATERIALMachined Aluminum
IGNITION BOX REQUIREDNo
MARINE USENo
CYLINDERS8
INCLUDED3 Bushings and 4 Springs for Mechanical Advance
Color-Matched Spark Plug Wire Retainer with Screws
Vacuum Advance Block-off Plate (Black)
Power Extension Cable
Tachometer Output Extension Cable

FITMENT

FORD BIG BLOCK "385" V8

  • 6.1 L / 370 in3
  • 7.0 L / 429 in3
  • 7.5 L / 460 in3

FORD CLEVELAND "335" V8

  • 5.8 L / 351 in3 often referred to as "351C"

FORD MODIFIED "335" V8

  • 5.8 L / 351 in3 often referred to as "351M"
  • 6.6 L / 400 in3

FITMENT NOTES

  • Will not fit 351W
