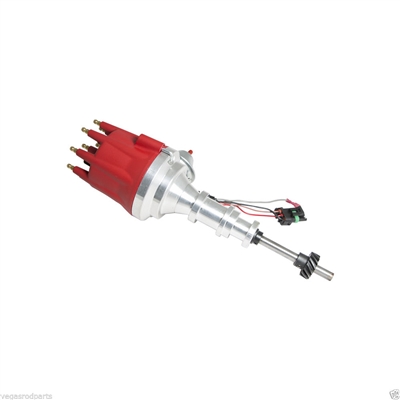

FORD Y-Block 1954-64 239-256-272-292-312 RED Electronic Performance Distributor
FORD Y-Block 1954-64 239-256-272-292-312 RED Electronic Performance Distributor



Our Price: $169.99

Product Code: JM7742R
Qty:

Description


NEW 1954-1964 FORD Y-BLOCK 239-256-272-292-312 HI-PERFORMANCEPRO SERIES READY TO RUN DISTRIBUTOR with RED CAP!!


This new distributor fits the 1954-1964 FORD Y-BLOCK ENGINES 239-256-272-292-312

Whether you are cruising the streets or hitting the track for the weekend, go “Pro” with TSP Ready to Run Distributors. Our Ready to Run distributors have machine polished aluminum housing with an adjustable vacuum adding 10 degrees of advance along with a simple Three-Wire connector and brass bushings. Our Pro Series now features an improved high performance circuit board for use up to 9,000 RPM and screw down cap. The compact design of the cap allows for more clearance around the intake manifold for cars and trucks that do not accept large HEI style cap.

Distributor also comes with extra Advance Bushing and Advance Springs (Please see the Product Details chart below). Also includes a Vacuum Block Off. Easy installation with 3 wire hookup and includes wiring diagram.


Product Detail

Gear Material

Steel

Top Shaft Support

Sealed Ball Bearing

Bottom Shaft Support

Sintered Busing

Shaft Diameter

5/8"

Vacuum Advance

Adjustable 9 Degrees

Advance Bushing

18 Degrees

Black

21 Degrees

Gray *

25 Degrees

Silver

28 Degrees

Gold

Advance Springs

2500 RPM

Gold

3750 RPM

Silver

5500 RPM

Black *

Wiring Power

Red

Coil Positive

Wiring Ground

Black

Engine Ground

Wiring Trigger

Orange

Coil Negative

Wiring Tach

Green

Digital Tach

* Installed on distibutor







Distributor Features:

· OEM Fitment

· High Performance Upgrade

· Three Wire Plug n Play Hookup

· Hotter Spark for more power and efficient fuel management

· Faster Engine Starts

· Allows for a wider spark

**PLEASE NOTE: YOU MUST RUN EXTERNAL COIL WITH THIS DISTRIBUTOR and it is NOT included. Coil needs to be 12V and have an output of 50,000 volts or more. This Small Cap HEI Ready-To-Run distributor is made for easy installation. Just hook up the three wires and you are "Ready-To-Run"!! This distributor comes with a 3 year warranty.
